Overview

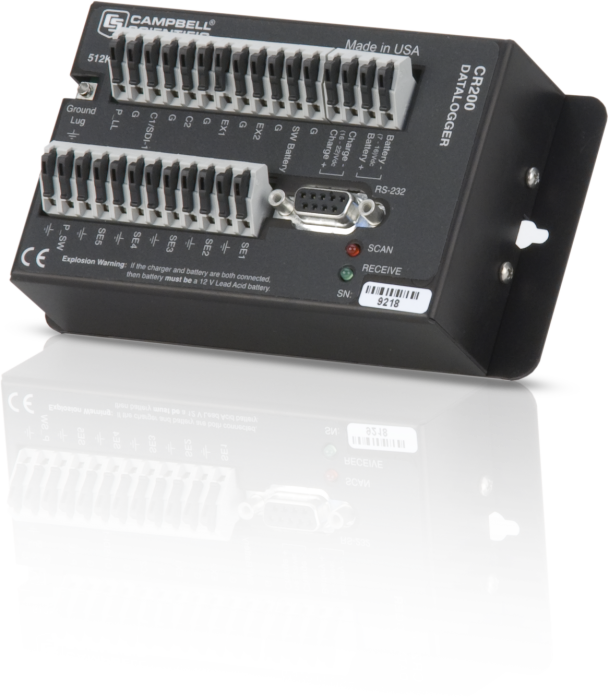

CR200是我们最低的成本数据记录器。它的输入通道配置和小尺寸是测量一个或两个传感器的最佳选择。当与ENC200外壳和小型16869电池配对时，包装的CR200的部署尺寸仅为6英寸乘7英寸。
The CR200 is the base model in the CR200 datalogger series. Three related models, the CR206, CR211, and CR216, carry onboard, spread-spectrum radios, and the CR295 is specially equipped for use with the TX312 GOES transmitter.
好处和功能
- 理想的理想位置只能测量少数传感器
- On-board 12 Vdc lead acid battery charger
- Stores 128,000 data points (nonvolatile)
- 数据格式是基于表的
Images
Specifications
| -笔记- | Note: Additional specifications are listed in theCR200-Series Specifications Sheet。 |
| A/D Converter | 12 bit |
| 最大扫描率 | 每秒一次 |
| Single-Ended Analog Channels | 5 (individually configured) |
| Analog Voltage Range | 0 to +2500 mV |
| Measurement Resolution | 0.6 mV |
| Excitation Channels | 2（适用于+2.5或+5伏的编程） |
| Switched Battery Port | 1 |
| 脉冲计数通道 | 2 |
| Control Ports | 2 |
| Battery Voltage Range | 7 to 16 Vdc |
| Communications | RS-232 |
Compatibility
不支持Campbell Scientific的SDM设备和多路复用器。
Sensors
CR200无法进行差异测量，并且与热电偶，我们的地理位置传感器，燃油水分/温度探针和土壤热通量传感器不兼容。但是，它可以测量各种传感器，包括SDI-12传感器和4至20个MA传感器。我们的CS625反射计，109 Thermistor和CS15电流传感器是专门为CR200系列数据分析器开发的。其他兼容的传感器包括风集，倾倒桶和气压计。有关兼容传感器的完整列表，请参见CR200系列手册。
Communications
CR200可以通过Direct Connect，NL100以太网接口，MD485多功能调制解调器和数字蜂窝调制解调器与PC通信。可以在CD295 Dataview II显示或PDA（需要PCONNECT或PCONNECTCE软件）上查看数据。
外壳
具有最小功率要求的应用程序可以使用ENC200机箱容纳数据记录器和＃16869密封可充电电池。ENG200不能容纳大于＃16869的晴雨表或电池。但是，对于大多数基于CR200的系统，ENC10/12或ENC12/14的外壳都足够了。
电源
When connected to the on-board charging circuit, the sealed rechargeable battery should be 7 Ahr or smaller. Using larger batteries with the data logger's built-in charger may result in excessive PC board heating. This is especially a concern when the battery is deeply discharged or failing with a shorted cell. Campbell Scientific also recommends that solar panels be 10 W or less and wall chargers be 1 A or smaller.
兼容软件
- Short Cut
- PC200W
- PC400 (version 1.0 or higher)
- LoggerNet(版本2.1或更高版本)
- PConnect (version 3.0 or higher)
- PConnectCE (version 2.0 or higher)
- VisualWeather (version 2 or higher)
Before March 2005, a CD was shipped with PakCom PC software and PakBus ActiveX (OCX). Effective, 3 March 2005, our DevConfig, PC200W, and Short Cut packages began to include support for the CR200 dataloggers. These programs are available for download from our website or are on our ResourceCD.
视频和教程
下载
CR200默认OS v.10（1.97 MB）09-08-2010
Default operating system loaded into the datalogger at the factory. Also included is the Compiler and CRBasic Editor support files for the CR2xx dataloggers.
使用这个文件will update the datalogger compiler andCRBasic Editor支持文件。
Includes: ETo, WindVector, LoggerIdentify
Excludes: GOES Instructions, SDI12Sensor, SerialInput, MODBUS Instructions, SendData
CR200 Modbus OS V.10（1.97 MB）09-08-2010
支持Modbus通信和SDI-12传感器的特殊操作系统。还包括CR2XX Datalogger的编译器和CRBASIC编辑器支持文件。
使用这个文件will update the datalogger compiler andCRBasic Editor支持文件。
Note: Not to be used with the CR200X series.
Includes: MODBUS Instructions, SDI12Sensor, WindVector
排除：Goes说明，序列显示，ETO，Senddata和LoggerIdentify
CR200Serial Input OS v.10 (1.97 MB)09-08-2010
Special operating system that supports serial sensors, SDI-12 sensors, and sending data to another PakBus device. Also included is the Compiler and CRBasic Editor support files for the CR2xx dataloggers.
使用这个文件will update the datalogger compiler andCRBasic Editor支持文件。
Includes: SerialInput, SendData, SDI12Sensor, WindVector
Excludes: GOES Instructions, ETo, MODBUS Instructions, LoggerIdentify
Device Configuration Utility v.2.26 (44.8 MB)03-16-2021
一种用于下载操作系统并设置坎贝尔科学硬件的软件实用程序。如果坎贝尔科学软件包先前安装了Pakbus图和网络计划者，也将更新它们。
支持的操作系统：
Windows 10, 8.1, 8, and 7 (Both 32 and 64 bit)
Short Cut v.4.4 (29.3 MB)03-16-2021
Short Cut creates simple programs for our CR200-series, CR300-series, CR510, CR500, CR10(X), 21X, CR23X, CR6, CR800, CR1000(X), CR3000, CR5000, CR9000X and GRANITE dataloggers. Both mixed array and table data operating systems are supported. Short Cut also supports our ET106, ET107 and MetData1 weather stations. The newest version includes the latest sensor files.
Frequently Asked Questions
Number of FAQs related toCR200:3
Expand AllCollapse All
-
The CR200X-series and the retired CR200-series dataloggers are NOT compatible with SDMs or multiplexers. If more channels are needed or may be needed in the future, consider purchasing a CR800, CR850, or CR1000 instead.
-
CR200系列Datalogger的独特之处在于它与其他Campbell Scientific Data Loggers没有车载程序编译器。这意味着CRBASIC文件（*.cr2）必须首先在计算机上编译，然后必须将编译的二进制文件（*.bin）发送到数据记录器。当在CRBASIC中创建程序时，最后一步是编译文件，因此创建程序bin文件。
编译器用于生成bin文件的编译器与数据记录器中的操作系统版本匹配，这一点非常重要。如果将bin文件发送到数据记录器，并且编译版本与当前OS不匹配，则程序发送将失败，并且将显示“错误的OS版本”消息。
为了避免OS版本不匹配问题，如果选择CR2文件作为要下载到数据记录器的文件，LoggerNetversion 2.1b and greater will first query the data logger for its OS version and then attempt to find the matching compiler in theLoggerNet程序文件目录（默认情况下，这是C:\Program Files\Campbellsci\LoggerNet). If the matching compiler exists,LoggerNetwill compile the file and send that file to the data logger. Note that if the *.bin file is chosen,LoggerNetwill not compile the file before sending it.
The software CD that is shipped with each CR200-series datalogger contains the appropriate compiler for the data logger OS. Copy this file into theLoggerNetprogram files directory so that it is available for use byLoggerNet。在CRBASIC中，选择此文件作为编译器中使用的编译器Options | Supported Loggers菜单项。
-
实际的最大值是在数据记录器上的每两个控制终端连接一个多路复用器。可以在多路复用器之间共享控制终端以增加连接的多路复用器的数量。但是，共享终端需要更复杂的接线和编程。建议每两个控制终端连接多个多路复用器的用户与Campbell Scientific的销售或支持工程师联系以寻求帮助。
